Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Bahan tubuh: | CF8, CF8M, CF3, CF3M, WCB | standar: | JIS |
---|---|---|---|
Ukuran: | DN500 ~ DN250 | Temperture: | -196 ° C ~ 650 ° C |
break: | Segel logam | Tekanan: | JIS10KJIS |
Cahaya Tinggi: | ss gate valve,metal seated gate valve |

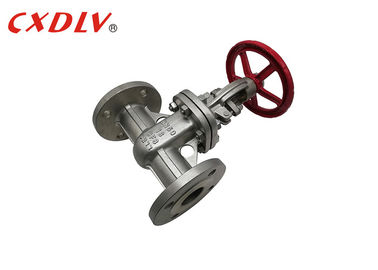

OEM Stainless Steel Flange Berakhir Gate Valve dengan Handwheel CF8 CF8M
Spesifikasi
Standar yang berlaku:
- DIMENSI WAJAH WAJAH: JIS B2002
- AKHIR DIMENSI FLANGE: JIS B2212-B213
- DESING: ASME B16.34, API608
- UJI: JIS B2003, API6D
Rentang ukuran:
- DN15 ~ DN250
Peringkat tekanan:
- JIS10K
Kisaran suhu:
- -29 ° C ~ 185 ° C
Aplikasi
Gate valve is a valve that the valve plate moves along the vertical direction in the pipeline.It can also be made into a gate that can produce a small amount of deformation to improve its processability and make up for the deviation of the sealing surface angle during the machining process. Gerbang katup adalah katup yang pelat katupnya bergerak sepanjang arah vertikal dalam pipa. Ini juga dapat dibuat menjadi gerbang yang dapat menghasilkan sejumlah kecil deformasi untuk meningkatkan kemampuan prosesnya dan menebus penyimpangan sudut permukaan penyegelan selama proses pemesinan. The board is called a resilient shutter. Papan ini disebut rana tangguh. When the gate valve is closed, the sealing surface can be sealed only by the medium pressure, that is, the sealing surface of the ram is pressed against the valve seat on the other side by the medium pressure to ensure the sealing of the sealing surface, which is self-sealing. Ketika katup gerbang ditutup, permukaan penyegelan hanya dapat disegel oleh tekanan sedang, yaitu, permukaan penyegelan ram ditekan terhadap kursi katup di sisi lain oleh tekanan sedang untuk memastikan penyegelan permukaan penyegelan , Yang menyegel diri. Most of the gate valves are forced to seal, that is, when the valve is closed, the external force is forced to press the gate to the valve seat to ensure the sealing of the sealing surface. Sebagian besar katup gerbang dipaksa untuk disegel, yaitu, ketika katup ditutup, kekuatan eksternal dipaksa untuk menekan pintu gerbang ke kursi katup untuk memastikan penyegelan permukaan penyegelan.
DN | L. | D | D1 | D2 | bf | z-φd | H |
50 | 178 | 155 | 120 | 96 | 16 | 4-19 | 320 |
80 | 203 | 185 | 150 | 126 | 18 | 8-19 | 390 |
150 | 267 | 280 | 240 | 212 | 22 | 8-23 | 674 |
Silakan hubungi untuk ukuran lain. |
Fitur
1. High height, long opening and closing time. 1. Tinggi tinggi, lama pembukaan dan penutupan. The opening and closing stroke of the shutter is large, and the drop is performed by the screw. Langkah pembukaan dan penutupan rana besar, dan penurunan dilakukan oleh sekrup.
2. The water hammer phenomenon is not easy to produce. 2. Fenomena water hammer tidak mudah untuk diproduksi. The reason is that the shutdown time is long. Alasannya adalah waktu penutupannya lama.
3. The medium can flow in any direction on both sides, which is easy to install. 3. Media dapat mengalir ke segala arah di kedua sisi, yang mudah dipasang. The gate valve channels are symmetrical on both sides. Saluran katup gerbang simetris di kedua sisi.
Pemilihan Model
Gerbang katup
Standar | ANSI | GB | JIS | KERIUHAN |
Tekanan | 150LB / 300LB | PN16 / PN25 / PN40 | 10rb / 20rb | PN16 / PN40 |
Matreial katup | 1) CF8 / SS304 2) CF8M / SS316 3) CF3 / SS304L 4) CF3M / SS316L 5) WCB |
